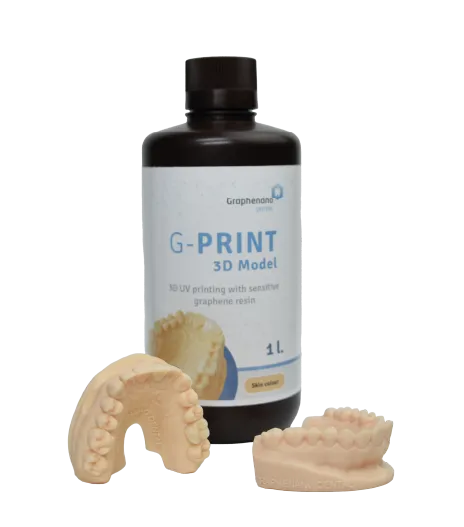

G-PRINT
Graphene-doped 3D resin for dental models
High precision in 3D printing for digital dentistry

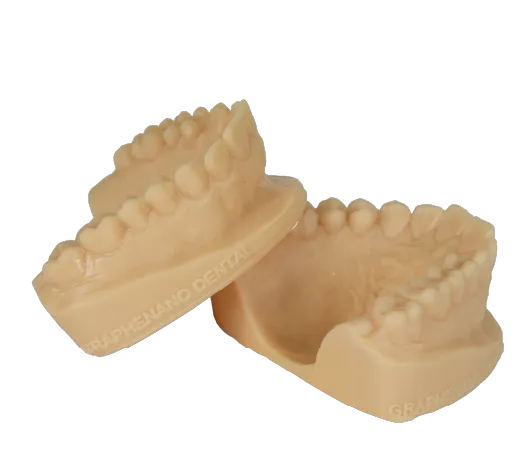

G-PRINT is a 3D printing resin developed by Graphenano Dental, formulated with advanced technology doped with medical-grade graphene. Designed for the manufacture of solid or hollow dental models using DLP printers, G-PRINT offers high dimensional stability, smooth non-porous surfaces and superior accuracy for precise dental restorations.
What makes G-PRINT resin unique?
G-PRINT resin has been developed to meet the demands of dental laboratories and digital clinics, allowing precise and consistent printing with long-lasting durability.
Benefits:
- Excellent visibility of margins and contours (natural tooth colour)
- Easy cleaning and simple handling with conventional plaster
- Humidity and abrasion resistant, avoiding surface adherence
- Printing without shrinkage thanks to its stability and low sedimentation
- Ideal for DLP 3D printers with a 405 nm wavelength
G-PRINT 3D Model workflow
The G-PRINT workflow is fast, simple and reproducible:
1
Design
2
Compatible 3D printer and calibration of G-PRINT resin
3
Prepare the model slice
4
Material required for printing
5
Model printing
6
Cleaning
7
Post-curing
G-PRINT technical parameters
- Hardness: 87 Shore D
- Viscosity (25°C): 552 mPa.s
- Curing wavelength: 405 nm
- Liquid density: 1.1 g/cm³
- Solid density: 1.184 g/cm³
- Elastic modulus (1): 2540 MPa
- Flexural strength (5%) (1): 80.6 MPa
- Exposure time: 0.6 – 5.5 s
- Shelf life: 12 months
🦷 Other dental products
Since its foundation, Graphenano Dental has evolved into a complete line of graphene dental products, including:

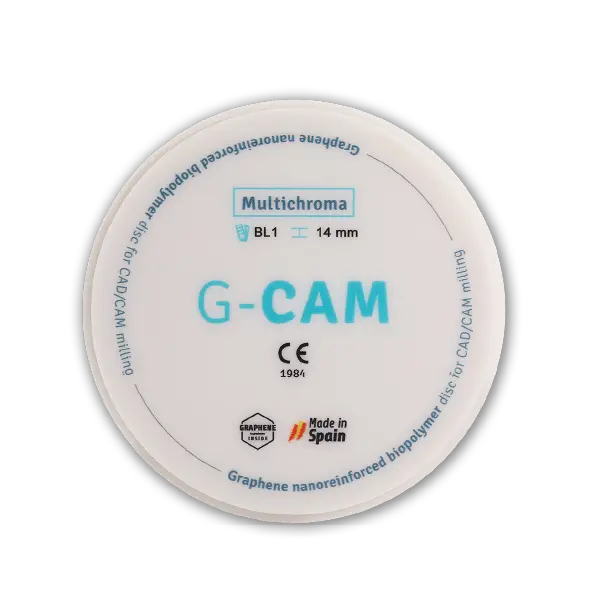

G CAM:
Graphene disc for CAD/CAM milling in multiple colours and thicknesses.

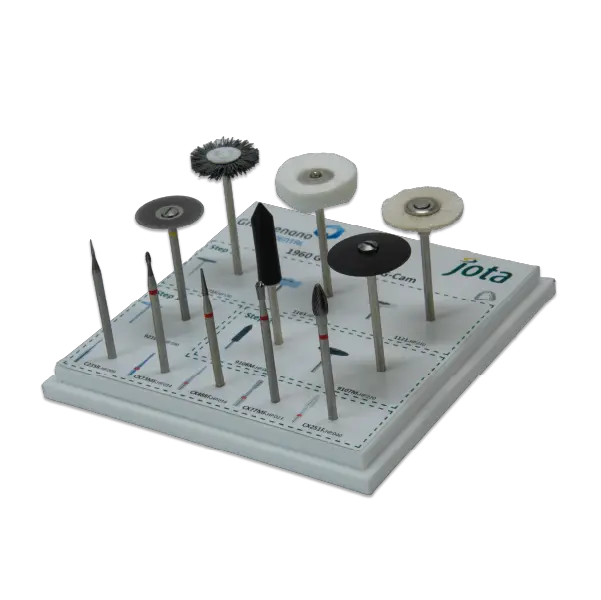

G-CAM Polishing Kit
Professional finishing for laboratories.

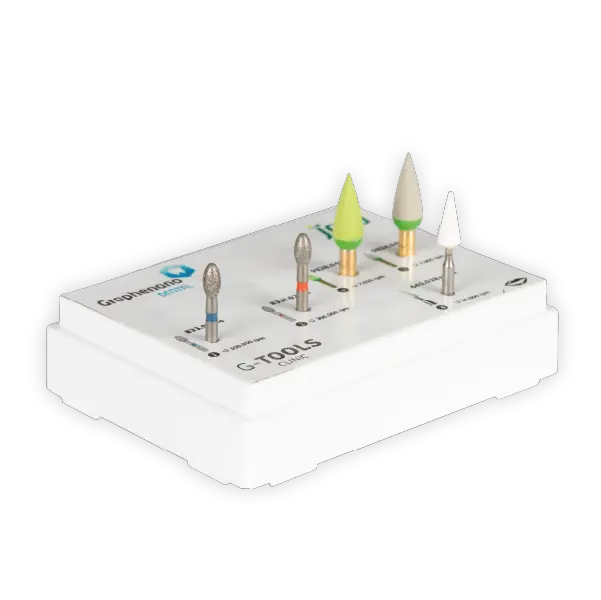

Clinical Polishing Kit
Adapted to the clinical environment.

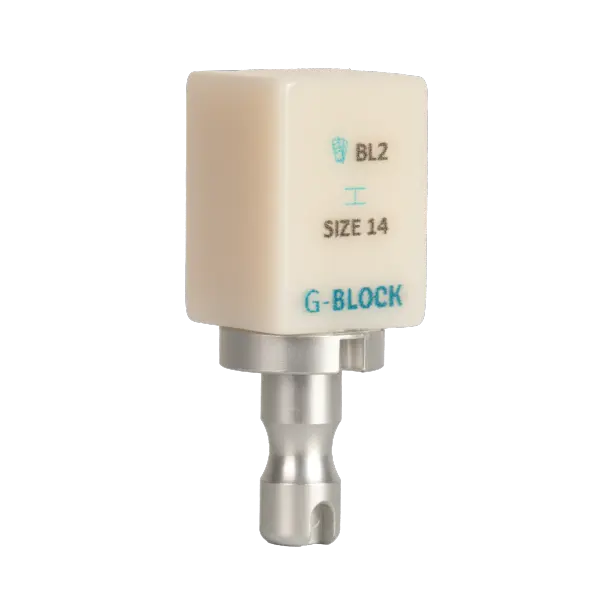

G-BLOCK
New versatile milling format, highly demanded by clinics and laboratories.
